Learning Goals: Gene Structure and Regulation
- Understand the structure of genes, including exons, introns, promoter, and operator regions.
- Explain basic gene regulation using the prokaryotic trp operon as an example.
Gene Structure
Genes consist of various regions, including exons (coding regions), introns (non-coding regions), and specific areas that regulate gene activity, such as promoters and operators.
Exons (Coding Regions)
- Exons are the sequences in a gene that code for proteins. They are transcribed into mRNA and then translated into proteins.
Introns (Non-Coding Regions)
- Introns are non-coding sequences within a gene. They are transcribed into mRNA but removed during RNA splicing, so they do not contribute to the final protein product.
Regulatory Regions
- Promoters: Specific DNA sequences located near the start of a gene. They play a crucial role in initiating transcription by providing binding sites for RNA polymerase and other transcription factors. This determines when and where a gene is expressed.
- Operators: DNA sequences that act as binding sites for repressor proteins. They regulate gene activity by controlling the access of RNA polymerase to the gene, effectively turning gene expression on or off, particularly in operons in prokaryotes.
These elements—exons, introns, promoters, and operators—work together to control gene expression and protein production, ensuring the right proteins are made at the right time.
Eukaryotic Gene Structure
Shows key regions including the promoter (upstream), exons, introns, terminator (downstream), and the 5' and 3' ends. The upstream region indicates areas before the gene start, while downstream indicates areas beyond the gene end.
Prokaryotic Gene Structure
Shows the promoter, operator, coding region, and terminator, with 5' and 3' ends labeled. The operator, located near the promoter, acts as a regulatory site where repressors or activators can bind to control transcription of the coding region. Unlike eukaryotic genes, prokaryotic genes lack non-coding introns, allowing direct transcription and translation from a start codon to a stop codon, enhancing the efficiency of gene expression in prokaryotes.
Gene Regulation
The trp operon in E. coli is a classic example of gene regulation in prokaryotes, controlling the synthesis of tryptophan through two main mechanisms: repression and attenuation.
Key Components of the trp Operon
- Operon: A cluster of genes controlled by a single promoter, transcribed together into a single mRNA.
- Regulatory Gene: Produces the trp repressor protein, which regulates the operon’s activity based on tryptophan levels.
- Repressor Protein: A protein that binds to the operator region to inhibit transcription when activated by binding to two tryptophan molecules.
- Promoter Region: A sequence where RNA polymerase binds to initiate transcription of the operon.
- Operator Region: A DNA sequence where the repressor binds to block RNA polymerase, preventing transcription.
- Leader Segment (LS): Located before the structural genes, this sequence contains two adjacent trp codons and can form hairpin loops that help regulate transcription via attenuation.
- Structural Genes: Code for enzymes that participate in a biochemical pathway to synthesize tryptophan. These enzymes are produced only when tryptophan levels are low, allowing the cell to efficiently regulate tryptophan production based on demand.
Mechanisms of Regulation
Repression
- Mechanism: When tryptophan levels are high, two tryptophan molecules bind to the trp repressor protein, activating it.
- Effect: The activated repressor binds to the operator region, blocking RNA polymerase from initiating transcription of the trp operon. This halts the production of enzymes needed for synthesizing tryptophan.
- Low Basal Rate: Even when repressed, the operon has a low level of transcription because the repressor occasionally detaches from the operator.

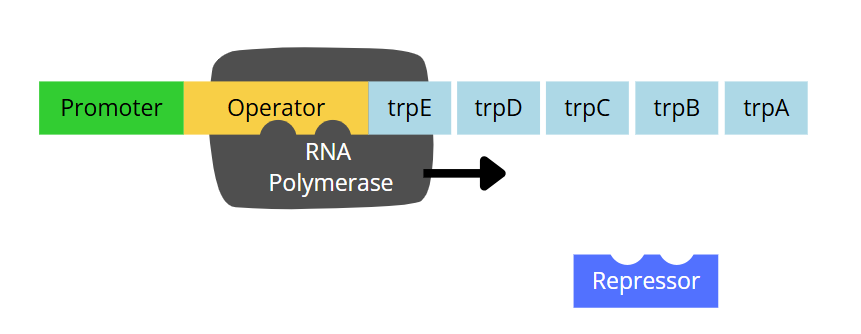

When Tryptophan is Absent
In the absence of tryptophan, the repressor protein remains inactive and cannot bind to the operator because it’s the wrong shape. RNA polymerase binds to the promoter and moves along the DNA, transcribing the operon. This allows the production of enzymes in the tryptophan synthesis pathway, enabling the cell to produce tryptophan as needed.

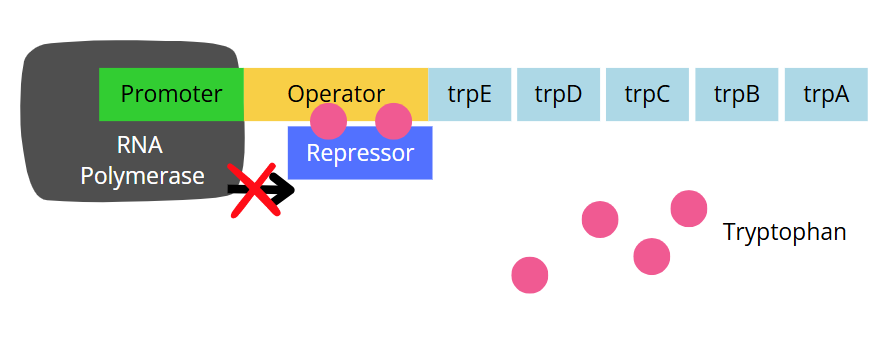

When Tryptophan is Present
Tryptophan molecules bind to the repressor protein, changing its shape and activating it. The activated repressor then binds to the operator, blocking RNA polymerase from binding to the promoter and transcribing the operon. This repression mechanism prevents the production of enzymes involved in tryptophan synthesis, conserving cellular resources.
Attenuation
- Mechanism: Attenuation is a secondary control mechanism, closely tied to the availability of tryptophan and the behavior of the ribosome at the leader segment.
- Role of the Leader Segment:
- The leader segment has two adjacent trp codons. When the operon is transcribed, these codons are critical in forming hairpin loops that determine whether transcription continues or stops.
- Low Tryptophan: When tryptophan levels are low, the ribosome pauses at the two adjacent trp codons, waiting for tryptophan-carrying tRNA. This pause causes a hairpin loop to form that does not stop transcription, allowing the five structural genes to be expressed.
- High Tryptophan: When tryptophan-carrying tRNA is abundant, the ribosome quickly passes over the two trp codons without pausing. This results in a different hairpin loop forming, which acts as a transcription termination signal, stopping the synthesis of the full mRNA and preventing the expression of the structural genes.
- Proximity of Transcription and Translation: Attenuation is possible in prokaryotes because transcription and translation occur closely together in the cytoplasm, as they are not separated by a nuclear membrane.
Summary
The trp operon uses repression and attenuation to regulate gene expression in response to tryptophan levels.
Repression involves the trp repressor binding to the operator when activated by two tryptophan molecules, blocking transcription initiation.
Attenuation involves the formation of hairpin loops in the leader segment, influenced by the ribosome's behavior at the two adjacent trp codons:
- Low Tryptophan: The ribosome stalls, allowing a hairpin loop that permits full transcription and expression of the structural genes.
- High Tryptophan: The ribosome does not stall, leading to a hairpin loop that terminates transcription early, preventing expression of the structural genes.
- Attenuation is unique to prokaryotes due to the close coupling of transcription and translation.
Short Answer
-
Exons are the coding regions that are transcribed into mRNA and then translated into proteins, while introns are non-coding regions that are transcribed but subsequently removed during RNA splicing.
-
Promoters are DNA sequences located near the start of a gene that provide binding sites for RNA polymerase and transcription factors to initiate transcription. Operators are DNA sequences where repressor proteins bind to control the access of RNA polymerase to the gene, thereby regulating gene expression.
-
The trp operon includes a promoter, an operator, a regulatory gene that produces the trp repressor protein, a leader segment containing critical trp codons, and structural genes that code for enzymes involved in tryptophan synthesis.
-
When tryptophan levels are high, tryptophan molecules bind to the trp repressor protein, activating it. The activated repressor then binds to the operator, blocking RNA polymerase from binding to the promoter and initiating transcription, thus preventing the production of enzymes for tryptophan synthesis.
-
In low tryptophan conditions, the trp repressor protein remains inactive because it does not bind tryptophan. As a result, it cannot bind to the operator, allowing RNA polymerase to bind to the promoter and transcribe the operon, which leads to the synthesis of enzymes required for tryptophan production.
-
Eukaryotic genes are located in the nucleus where transcription takes place. Their structure includes a promoter, terminator, exons, and introns. The initial transcript (pre-mRNA) undergoes RNA splicing in the nucleus to remove the introns, and the resulting mRNA is then exported to the cytoplasm for translation. In contrast, prokaryotic genes lack introns and have a simpler structure that includes a promoter, operator, coding region, and terminator. Transcription and translation in prokaryotes occur simultaneously in the cytoplasm since there is no nuclear membrane separating these processes.
-
Repression directly blocks the initiation of transcription. When tryptophan levels are high, tryptophan molecules bind to the trp repressor protein, activating it. The activated repressor then binds to the operator, which physically prevents RNA polymerase from binding to the promoter and initiating transcription of the operon.
In contrast, attenuation does not prevent transcription from starting; instead, it regulates the elongation of the mRNA transcript. In this mechanism, the leader segment of the operon forms specific hairpin loops. When tryptophan levels are low, the ribosome stalls at the leader peptide due to a shortage of tryptophan-charged tRNA. This stalling promotes the formation of an anti-terminator hairpin, allowing transcription to continue. When tryptophan levels are high, the ribosome does not stall, which leads to the formation of a terminator hairpin that signals RNA polymerase to terminate transcription prematurely.
Thus, repression blocks transcription initiation by preventing RNA polymerase binding, while attenuation regulates whether transcription proceeds beyond the leader segment, effectively controlling the length of the mRNA produced.
