Learning Goals: DNA Manipulation Techniques

  • Understand the use of enzymes in DNA manipulation, including the roles of polymerase in DNA synthesis, ligase in joining DNA fragments, and endonucleases in cutting DNA.
  • Explain the function of CRISPR-Cas9 in bacteria and its application in genome editing.
  • Describe the process of DNA amplification using polymerase chain reaction (PCR) and the use of gel electrophoresis for sorting DNA fragments, including the interpretation of gel runs for DNA profiling.

Enzymes: The Molecular Machines Powering DNA Manipulation

Enzymes are nature’s catalysts, speeding up essential biochemical reactions—including those used to manipulate DNA in genetic research and biotechnology. These molecular machines make everything from DNA replication to gene editing possible!


DNA Polymerase: The DNA Builder

DNA Polymerase is like a master builder for DNA, synthesizing new strands by adding nucleotides to an existing DNA template. It’s essential for DNA replication in cells and is the key enzyme behind the revolutionary polymerase chain reaction (PCR), used to amplify DNA in labs.


Restriction Enzymes: The DNA Cutters

Restriction enzymes, also known as endonucleases, are like molecular scissors, cutting DNA at specific sequences. These enzymes create either sticky ends (overhanging strands of DNA) or blunt ends (clean cuts). Sticky ends are particularly useful because they can easily bind with complementary sequences, making DNA fragment joining a breeze! Restriction enzymes are invaluable tools in gene cloning, DNA analysis, and genetic engineering.


DNA Ligase: The DNA Glue

DNA Ligase is the ultimate "glue" in the DNA world—it seals breaks in the DNA backbone by forming bonds between sugar and phosphate groups. It’s crucial for gene cloning and plasmid insertion, connecting DNA fragments that were cut by restriction enzymes, regardless of whether they have sticky or blunt ends.


CRISPR-Cas9: The Gene Editing Powerhouse

CRISPR-Cas9 is like a GPS-guided scalpel for DNA! Cas9, an endonuclease, makes precise cuts at specific DNA locations. This technology is used in gene editing to precisely modify, delete, or insert genetic material, revolutionizing fields like agriculture, medicine, and research.


Reverse Transcriptase: The RNA Converter

Reverse Transcriptase is a molecular translator—it converts RNA back into complementary DNA (cDNA), allowing scientists to study gene expression. This enzyme is key to many molecular biology techniques, helping researchers unlock the secrets of how genes are expressed.


Applications of These Enzymes

These powerful enzymes are the driving force behind gene cloning, DNA sequencing, gene therapy, genetic engineering, and genome editing. They are advancing medical research, helping to fight diseases, improve agricultural practices, and create ground-breaking biotechnological innovations.

When the Hunters Become the Hunted: How Bacteria Fight Back with CRISPR

Bacteria and viruses can make us sick, but did you know that viruses can also infect bacteria? To defend themselves, bacteria use a system called CRISPR, which works like an immune memory. Scientists have adapted CRISPR into a groundbreaking gene-editing tool, revolutionizing medicine and biotechnology

CRISPR-Cas9: A Revolutionary Breakthrough in Genome Editing

Did you know? The ground-breaking CRISPR-Cas9 technology won the 2020 Nobel Prize in Chemistry for its game-changing ability to edit genes! But CRISPR isn’t just about cutting-edge science—it started as a humble bacterial defense system, helping bacteria survive viral attacks.


How Does It Work?

CRISPR: Bacteria’s Memory Bank

  • CRISPR stands for Clustered Regularly Interspaced Short Palindromic Repeats. This incredible system allows bacteria to store information from past viral infections, so they can recognize and defend against viruses in the future. Think of it as a built-in immune system for bacteria!

Viruses Invading Bacteria

  • Bacteriophages—viruses that attack bacteria—inject their DNA into the bacterial cell. If left unchecked, this viral DNA hijacks the bacteria’s machinery, forcing it to produce more viruses and ultimately killing the cell.


CRISPR-Cas9: The Bacterial Defense System

  • CRISPR Array: This specialized DNA sequence stores information about previous viral invasions in the form of spacers—pieces of viral DNA that serve as a reference for future defense.
  • Spacers: These snippets of viral DNA allow bacteria to recognize and fight off the same virus if it returns.

Cas9: The Molecular Scissors That Changed the World

  • Cas9 is the star of the CRISPR system—a powerful enzyme that acts like molecular scissors. Cas9 is guided by a CRISPR RNA (crRNA), which leads it to the invading DNA, where it cuts with precision, right next to a PAM site (Protospacer Adjacent Motif). The PAM sequence ensures Cas9 targets only the viral DNA, keeping the bacteria’s own DNA safe from harm.

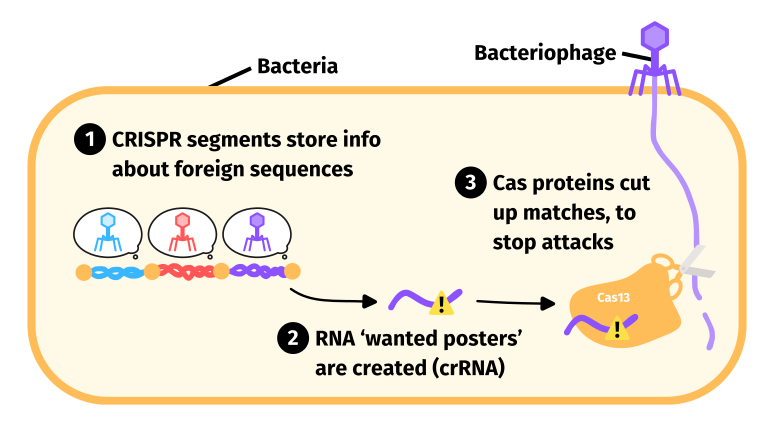

CRISPR as a Bacterial Defence System

This diagram shows how CRISPR-Cas9 functions as a primitive adaptive immune system in bacteria. CRISPR is a specialised section of bacterial DNA made up of nucleotide repeats and spacers. The spacers are short segments of DNA taken from invading viruses (bacteriophages), which help the bacteria recognise and defend against the same virus if it attacks again. The nucleotide repeats play an important role by preventing cleavage of the spacers and ensuring the correct processing of guide RNA (gRNA). These gRNAs guide Cas proteins to the matching viral DNA, allowing the bacteria to cut and destroy it.

Image source: Wikimedia Commons, licensed under CC BY-SA 4.0.

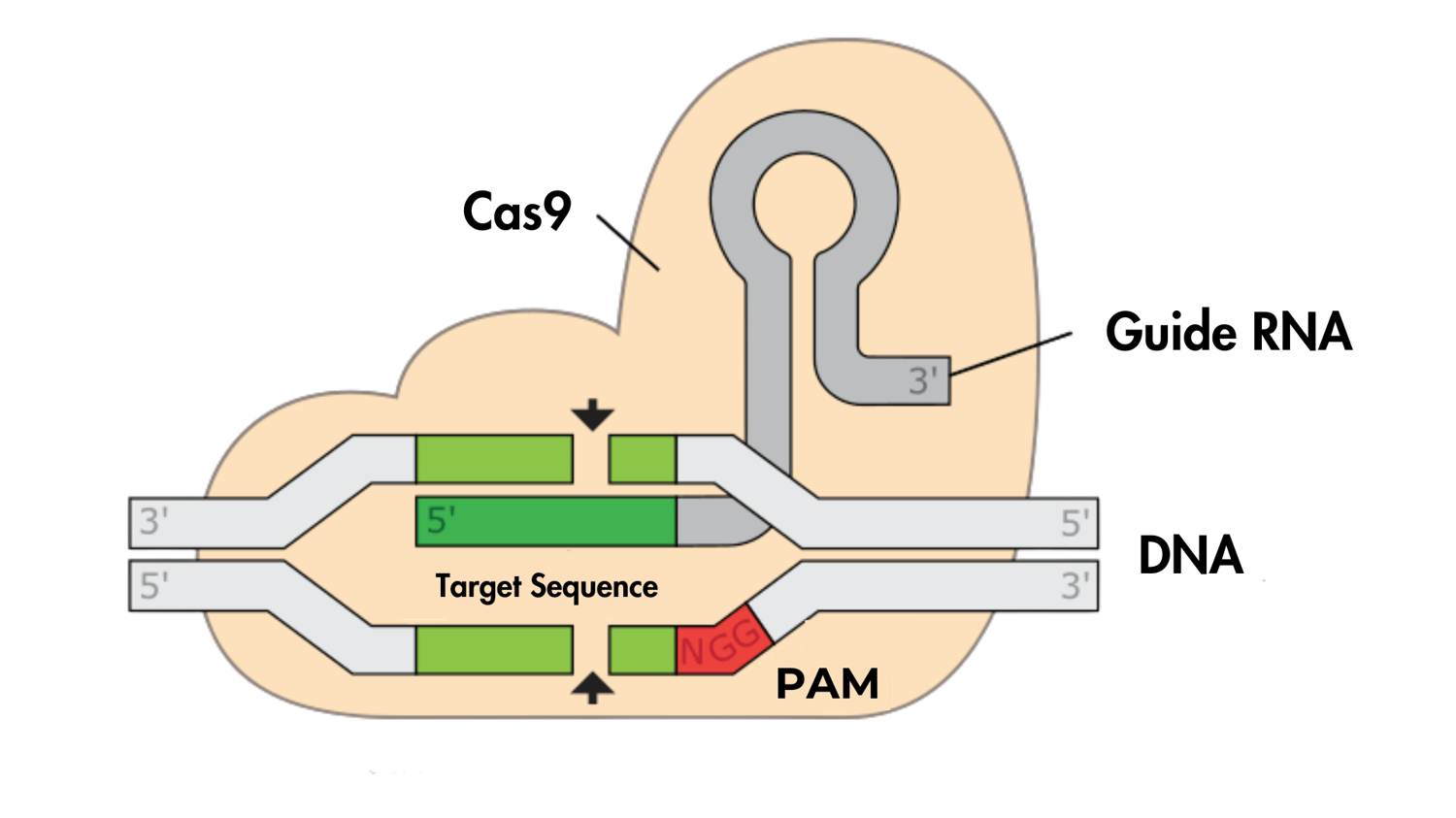

CRISPR-Cas9 Gene Editing Mechanism

This diagram shows how the Cas9 protein, an endonuclease associated with the CRISPR system, functions as a pair of molecular scissors, capable of precisely cutting both strands of DNA at a target site. Cas9 is guided by a guide RNA (gRNA) that is complementary to the target DNA sequence located upstream of a short nucleotide sequence called the protospacer adjacent motif (PAM). The PAM sequence, found on the opposite strand to the gRNA binding site, plays an essential role in distinguishing self from non-self DNA. Cas9 will only cut the DNA if the correct PAM sequence is present, ensuring specificity in gene editing.

CRISPR-Cas9: A Revolutionary Breakthrough in Genome Editing

How Scientists Use CRISPR-Cas9 for Gene Editing

  • In gene editing for plants and animals, scientists harness Cas9’s cutting power. They combine Cas9 with a single guide RNA (sgRNA), which directs Cas9 to the exact spot in the DNA that needs to be edited.
  • Once Cas9 cuts the DNA near the PAM site, scientists can precisely delete, modify, or insert genes—revolutionizing medicine, agriculture, and more.

Why Is CRISPR-Cas9 So Important?

  • Cost-effective and easy to use, CRISPR-Cas9 has endless possibilities. In agriculture, it’s used to enhance photosynthesis and boost crop yields—helping farmers grow more food, more efficiently.
  • Beyond agriculture, CRISPR is changing the face of medicine and biotechnology, from curing genetic diseases to creating innovative treatments for various conditions.

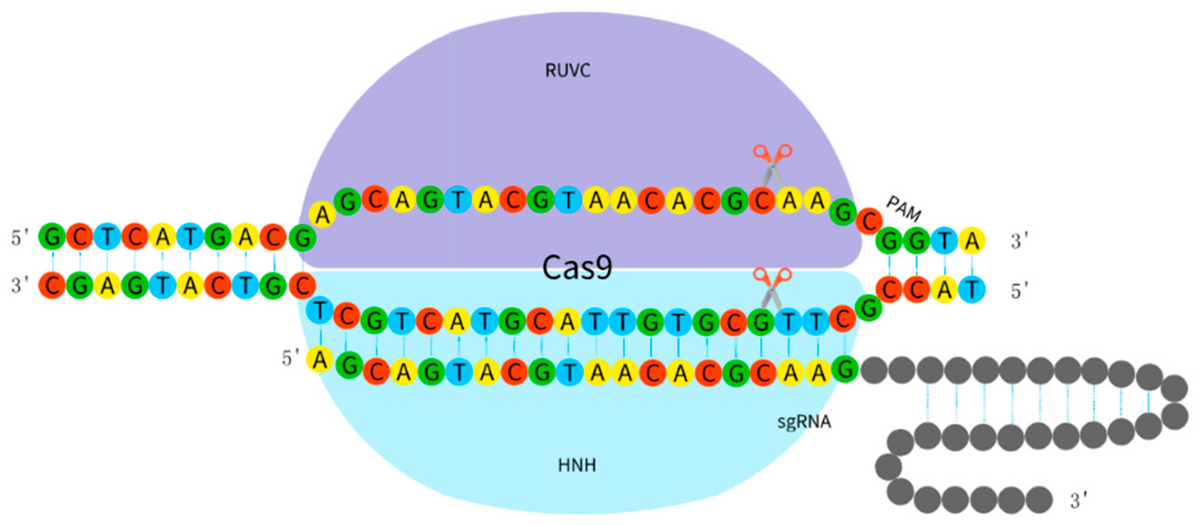

This diagram illustrates how Cas9 (purple), guided by sgRNA (grey), targets and cuts a specific DNA sequence. This enables scientists to disable, modify, or insert genes, allowing for precise genetic changes. CRISPR’s accuracy makes it a powerful tool for medical research, disease treatment, agriculture, and biotechnology.

Ye, Runle, Xi Yang, and Yuchun Rao, CC BY 4.0, via Wikimedia Commons.

PCR: The Power of DNA Amplification

You might have had a PCR test during the pandemic, but what exactly is PCR? Polymerase Chain Reaction (PCR) is a powerful technique used to amplify tiny amounts of DNA, creating millions of copies in just hours. It’s essential for medical diagnostics, forensic science, and genetic research!

DNA Amplification with PCR

Purpose: Polymerase Chain Reaction (PCR) is a technique used to rapidly make millions of copies of a specific DNA segment.


Steps of PCR

  1. Denaturation: The DNA is heated to around 95°C to break hydrogen bonds and separate the two DNA strands.
  2. Annealing: The temperature is lowered to around 50-65°C, allowing primers to bind to the target DNA sequence. Primers are short, single-stranded sequences of DNA that are complementary to the target region. They serve as starting points for DNA synthesis.
  3. Extension: The temperature is raised to 72°C, where Taq polymerase synthesizes new DNA strands by adding nucleotides to the primers, creating two copies of the DNA.


  • Taq polymerase: A heat-resistant enzyme derived from the bacterium Thermus aquaticus. It is crucial for PCR because it can withstand the high temperatures needed for DNA denaturation, making it highly efficient for DNA synthesis in repeated cycles.
  • Repetition: This cycle (denaturation, annealing, and extension) is repeated many times to exponentially amplify the target DNA.

Applications:

  • Used for DNA cloning, genetic testing, forensic analysis, and diagnosing genetic diseases.

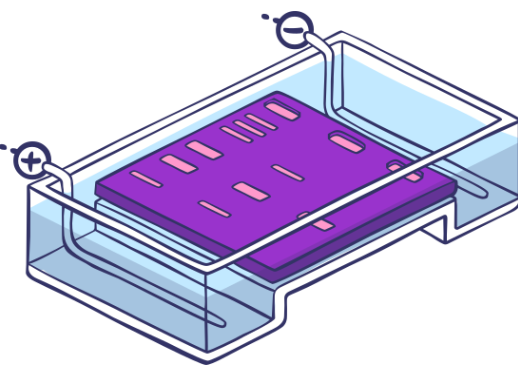

Gel Electrophoresis: Separating DNA, One Band at a Time

Scientists use gel electrophoresis to separate DNA fragments by size. An electric current pulls the negatively charged DNA through a gel, with smaller fragments moving faster and farther. This technique is essential for DNA analysis, from forensic investigations to genetic research

Gel Electrophoresis Virtual Lab

Gel Electrophoresis

Purpose: Gel electrophoresis is a technique used to separate DNA fragments based on their size.


Process

  1. Loading DNA: DNA samples are loaded into wells in a gel made of agarose.
  2. Electric Current: An electric current is applied to the gel, causing the negatively charged DNA fragments to move towards the positive electrode.
  3. Separation by Size: Smaller DNA fragments move faster and travel farther through the gel, while larger fragments move more slowly and stay closer to the wells.

Staining and Visualization: After the electrophoresis run, the DNA fragments are stained with a dye (e.g., ethidium bromide) that allows them to be seen under UV light.


Applications

  • Used to analyze DNA for forensic purposes, paternity testing, and checking the success of PCR or cloning experiments.

DNA Manipulation Techniques Quiz

DNA Manipulation Techniques Quiz

Question 1 of 10

Current Score: 0

Best Score: 0

Short Answer

  • DNA polymerase is responsible for DNA synthesis by adding nucleotides to an existing DNA template. Restriction enzymes (endonucleases) function as molecular scissors, cutting DNA at specific sequences to generate either sticky ends or blunt ends. DNA ligase acts as the glue, joining DNA fragments together by forming phosphodiester bonds between the sugar and phosphate groups.

  • In bacteria, the CRISPR-Cas9 system serves as a defense mechanism. CRISPR arrays store snippets of viral DNA (spacers) from past infections, and Cas9 is guided by CRISPR RNA (crRNA) to target and cut invading viral DNA at specific sites near a PAM sequence. In genome editing, scientists harness this system by combining Cas9 with a single guide RNA (sgRNA) to direct precise DNA cuts at desired locations in an organism's genome, allowing for targeted gene modifications, deletions, or insertions.

  • The Polymerase Chain Reaction (PCR) involves three main steps that are repeated over many cycles (typically 25-35 cycles) to achieve exponential amplification of a specific DNA segment:

    1. Denaturation:
    2. The reaction mixture is heated to around 95°C to separate the double-stranded DNA into single strands.
    3. Annealing:
    4. The temperature is lowered to between 50-65°C, allowing primers to bind (anneal) to their complementary sequences on the single-stranded DNA templates.
    5. Extension:
    6. The temperature is raised to 72°C, which is optimal for Taq polymerase. Taq polymerase, a heat-resistant enzyme derived from Thermus aquaticus, catalyzes the synthesis of new DNA strands by adding nucleotides to the primers.

    Taq polymerase's ability to remain active at high temperatures is crucial, as it allows the extension step to occur efficiently even after repeated cycles of heating and cooling. Each cycle doubles the amount of target DNA, resulting in exponential amplification of the desired DNA fragment.

  • Gel electrophoresis involves loading DNA samples into wells of an agarose gel and applying an electric current. The negatively charged DNA fragments migrate toward the positive electrode. Smaller DNA fragments move faster and travel further through the gel compared to larger fragments. After separation, the gel is stained with a dye (e.g., ethidium bromide) and visualized under UV light, allowing for the interpretation of gel runs for purposes such as DNA profiling and verifying the success of PCR or cloning experiments.
