Ever wondered how cells decide when to turn genes on or off? Imagine a factory that only produces a product when it’s needed, this is exactly how bacteria regulate genes to conserve energy.
One of the best examples of gene regulation is the trp operon in E. coli, which controls the production of tryptophan, an essential amino acid. If you’re studying VCE Biology, understanding gene structure, repression, and attenuation in the trp operon is key. Let’s break it down into three simple ideas, two study tips, and one practice question to help it stick.
Three Key Ideas: How the trp Operon Works
1. Gene Structure: The Blueprint of the trp Operon
Before we get into how the trp operon is controlled, we need to know its structure. Like all operons, the trp operon is a cluster of genes controlled by a single promoter, meaning all the genes needed to synthesize tryptophan can be turned on or off at the same time.
Key regions of the trp operon:
- Promoter – The starting point where RNA polymerase binds to begin transcription.
- Operator – A DNA sequence that acts as a switch. A repressor protein can bind here to block RNA polymerase, turning the operon off.
- Structural genes – Code for enzymes that synthesize tryptophan. These are only expressed when tryptophan is needed.
- Leader sequence – A regulatory region at the start of the operon that plays a role in attenuation (more on this later).
Think of the trp operon like an assembly line. The operator is the switch that controls whether the production line (structural genes) is running or stopped.
2. Repression: The Main On/Off Switch
The trp operon is regulated by a repressor protein that acts like a switch, responding to the amount of free tryptophan in the cell.

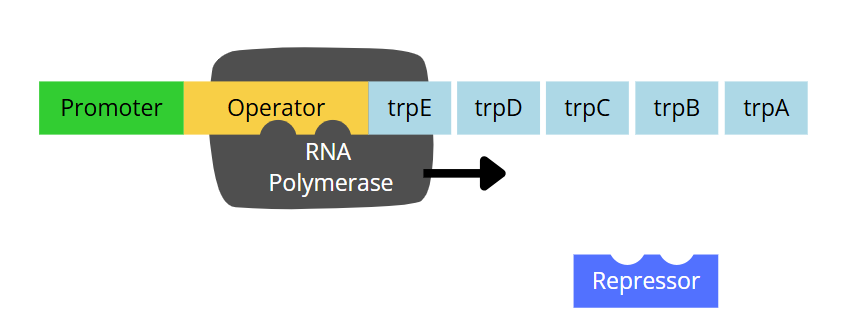

🔹 When tryptophan levels are low → The operon is ON
- The repressor protein is inactive and cannot bind to the operator.
- RNA polymerase binds to the promoter and transcribes the structural genes.
- The enzymes for tryptophan synthesis are produced, allowing the cell to make its own tryptophan.

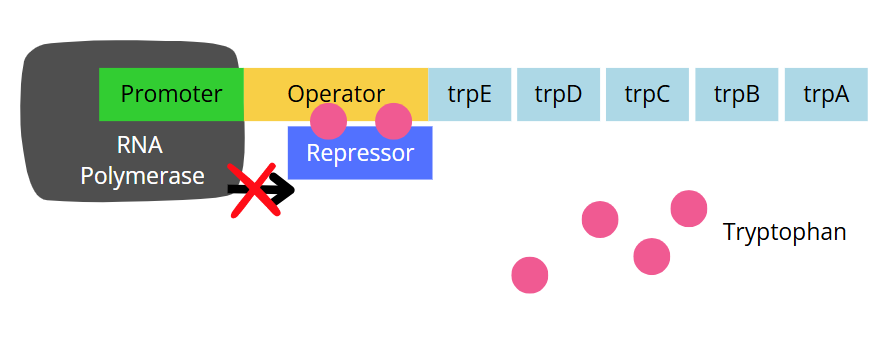

🔹 When tryptophan levels are high → The operon is OFF
- Free tryptophan molecules bind to the repressor protein, changing its shape and activating it.
- The activated repressor binds to the operator, blocking RNA polymerase from transcribing the structural genes.
- Since tryptophan is already available, the cell saves energy by not producing more.
Analogy: If your fridge is already stocked with food, you don’t go grocery shopping. The cell “sees” that it has enough tryptophan and shuts down production.
3. Attenuation: Fine-Tuning Tryptophan Production
Repression is like turning off a tap, but attenuation is like adjusting the flow. This backup system ensures the cell only makes as much tryptophan as it actually needs.
Here’s how it works:
- When tryptophan is scarce, free-floating tryptophan levels are low, but some tryptophan is still available on tRNA for protein synthesis.
- The ribosome begins translating the leader sequence of the operon, which contains two adjacent tryptophan codons.
- If tryptophan-charged tRNAs are readily available, the ribosome quickly moves past these codons, triggering the formation of a termination hairpin loop. This stops transcription before the structural genes can be fully transcribed.
- If tryptophan-charged tRNA is low, the ribosome stalls at the trp codons, waiting for charged tRNA to arrive. This stalling prevents the formation of the termination loop, allowing full transcription of the structural genes.
Analogy: If you have bottled water (tRNA-bound tryptophan), you might delay going to the store (activating full transcription) until all your bottles are empty.
This system fine-tunes gene expression based on how much tryptophan is truly available, ensuring that the cell produces just the right amount without wasting energy.
Study Tips: Make This Stick!
1. Watch a Video for Visual Clarity
Seeing this process in action makes it much clearer. A great resource for VCE students is Andrew Douch, a legendary VCE Biology presenter and teacher. His explanations are engaging and to the point. Check out this excellent video on the trp operon.
2. Test Yourself with Practice Questions
Reinforce your learning with detailed notes, diagrams, and practice questions on my site: Gene Structure & Regulation.
One Question
Explain what happens to the trp operon when tryptophan levels in the cell increase. In your response, refer to both repression and attenuation.
Final Thought: Why This Matters
The trp operon is a brilliant example of how cells adapt and respond to their environment. Understanding this not only helps in exams but gives you insight into the real-world applications of gene regulation, from genetic engineering to medical research.
